Galvanised Steel Tube Railing Panels for Crowd Control, Children Playground and Other Temporary Barrier Uses

We supply hot dipped galvanised temporary fence made of steel tubes welded with frame and infilling panels, and base feet. The temporary control system is a hollow section steel fencing used to secure traffic and events.

Color Painted Iron Fence Barrier

Welded tube panels with hot dip galvanised coating, 42 microns anti-corrosion zinc coating layer.

Material : low carbon steel wire Q195 Q235 .low carbon steel pipe tube
Surface treatment: hot dipped galvanized 300g/sm zinc; or hot dipped galvanized + painted

We supply frame tube temporary fence with Infill Steel Tube Railings, designed for easy installation by using:
Galvanised clamps;
Three types of bases: bridge feet, cross feet and flat feet type.


Pipe diameter 3-5mm; 6.0mm-10mm, or custom
Mesh/Opening 60*150mm; 75*75mm; 50x50mm; 60x60mm; 75x100mm; 75*150mm; 50*100mm
Height X width 2.1*1.1m,  2.1x2.9m, 2.1x2.4m, 1.8x2.4m, 2.1x3.3m, 2.4*1.2m, 2.5*1.1  or as request
Frame diameter 25mm, 32mm, 38mm, 40mm, 42mm, 48mm
Bottom foot Detatch cross,   bridge type, flat
Polyester painting color Any RAL series color



Protection from theft and accidents;
Secure building area;
Special event crowd control.
For major public events, playgrounds, sports, concerts, festivals, gatherings.

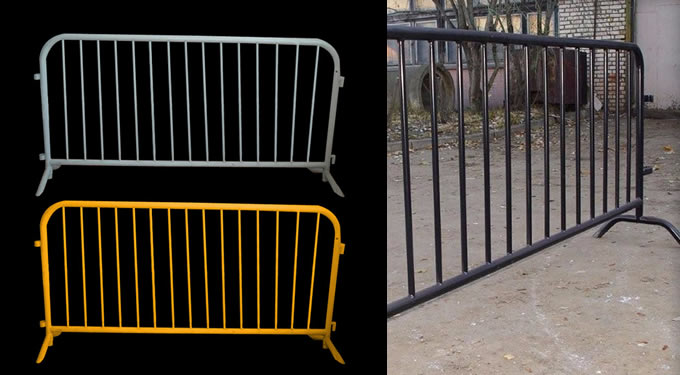

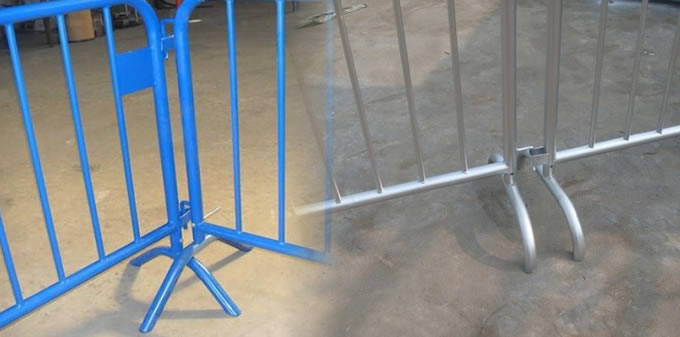

Heavy Duty Crowd Control Barrier Barricades / Bike Rack Pedestrian Barrier / Traffic Barrier

Surface treatment, power coated.

Material:  Low carbon steel pipes
Process: Made through pipe welding then galvanized or powder coated
Application: Public events, exhibitions, festive parties, sporting events, concerts, construction sites and concerts  and other public restriction area
Features: Corrosion resistant, age resistant, sunshine proof, weather proof, easy installation and move
Anti Corrosion Form:  Hot dipped galvanized; Powder coating
Frame Infill picket Panel width Panel height Pipe Spacing Feet stype
20mm 25mm   20mm25mm 2.9m   1.17m   330mm Flat feet


Hollow Section Steel Pipe Fencing
Lightweight pipe railing fence for easy installing or moving , while giving strong performance.

We offer standard size pipe panels while custom sizes and specifications are available upon request to meet your specific needs.

Check other products we supply for temporary fencing uses:

Modular security mesh panels;
Framework Steel Mesh Fence;
Portable Cattle Yard Panels;
Chain Link Fence.
